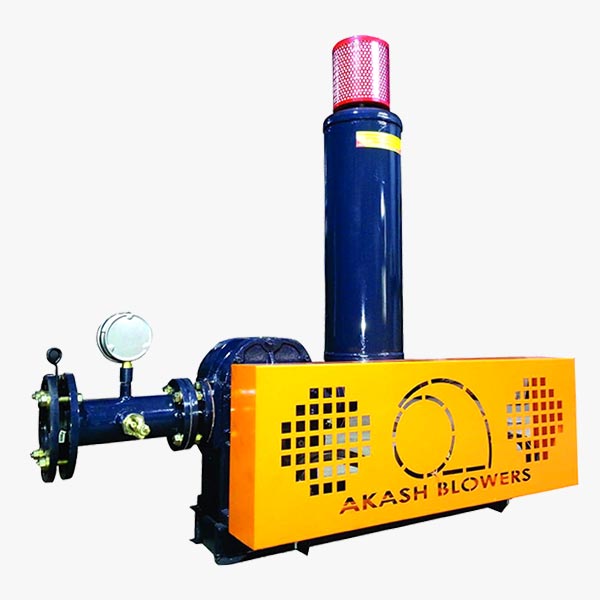

Twin Lobe Air Blower AB-44
AKASH Twin Lobe Air Blower (AB-44) are positive displacement units engineered for reliable, oil-free air delivery. Their air delivery is governed by three key factors: blower geometry & size, rotational speed, and system pressure / resistance conditions.
Twin Lobe Air Blower AB-44
The AKASH Heavy-Duty Twin Lobe Air Blower AB-44 is a high-performance, positive displacement blower delivering consistent, oil-free air for demanding industrial applications. With flow capacity up to 208 m³/hr and pressures reaching 10,000 MMWG, it operates reliably under extreme conditions. Twin rotors rotate in opposite directions within a robust casing, ensuring pulsation-free, low-noise airflow. Available in air-cooled and water-cooled versions, it suits cement, steel, wastewater treatment, pneumatic conveying, and chemical industries. Built with high-grade materials and alloy steel timing gears, it offers durability, minimal maintenance, and energy-efficient, clean air delivery for continuous-duty operations.
Product Details
Products Video
Details
AIR COOLED
| MODEL | IN./OUT. (MM) | SPEED (RPM) | 1000 MMWG (M³/HR / BHP) | 2000 MMWG (M³/HR / BHP) | 3000 MMWG (M³/HR / BHP) | 4000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|---|---|
| AB-44 | 80 | 800 | 89 / 0.7 | 77 / 1.1 | 67 / 1.6 | 59 / 2.0 |
| 1000 | 119 / 0.9 | 106 / 1.4 | 97 / 1.9 | 89 / 2.5 | ||
| 1200 | 149 / 1.0 | 136 / 1.7 | 127 / 2.3 | 119 / 3.0 | ||
| 1400 | 179 / 1.2 | 166 / 2.0 | 156 / 2.7 | 148 / 3.5 | ||
| 1600 | 208 / 1.4 | 196 / 2.3 | 186 / 3.1 | 178 / 4.0 |
| MODEL | IN./OUT. (MM) | SPEED (RPM) | 5000 MMWG (M³/HR / BHP) | 6000 MMWG (M³/HR / BHP) | 7000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|---|
| AB-44 | 80 | 800 | 52 / 2.4 | 45 / 2.9 | 39 / 3.3 |
| 1000 | 82 / 3.0 | 75 / 3.6 | 69 / 4.1 | ||
| 1200 | 111 / 3.7 | 105 / 4.3 | 99 / 5.0 | ||
| 1400 | 141 / 4.3 | 135 / 5.0 | 129 / 5.8 | ||
| 1600 | 171 / 4.9 | 165 / 5.8 | 159 / 6.6 |
WATER COOLED
| MODEL | IN./OUT. (MM) | SPEED (RPM) | 8000 MMWG (M³/HR / BHP) | 9000 MMWG (M³/HR / BHP) | 10000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|---|
| AB-44 | 80 | 800 | 34 / 3.7 | 29 / 4.2 | 24 / 4.6 |
| 1000 | 64 / 4.7 | 59 / 5.2 | 54 / 5.8 | ||
| 1200 | 94 / 5.6 | 88 / 6.3 | 83 / 6.9 | ||
| 1400 | 123 / 6.6 | 118 / 7.3 | 113 / 8.1 | ||
| 1600 | 153 / 7.5 | 148 / 8.4 | 143 / 9.2 |
Features
Delivers up to 208 m³/hr at 1000 MMWG and 1600 RPM (as per product data)
Available in both air-cooled & water-cooled versions
Capable of handling high pressures (up to ~10,000 MMWG depending on RPM / cooling)
100% oil-free air delivery (ensures no contamination in the air path)
Compact and sturdy construction suitable for industrial environments
Low noise and vibration in operation
Continuous duty design for 24/7 applications
Simple installation, alignment, and maintenance
SCOPE OF SUPPLY (Twin Lobe Air Blower AB-44)
A. Blower & Rotor Assembly
AB-44 twin-lobe rotor unit (housing, lobes, shaft, bearings)
Precision-machined cast iron housing
B. Drive & Mounting System
Electric motor (matched to AB-44 performance)
Coupling or direct drive arrangement
Common base frame with alignment and vibration pads
C. Air Path Components & Accessories
Inlet filter / strainer
Suction silencer
Discharge flange / stub connection
Optional non-return (check) valve
D. Protection & Instrumentation
Pressure gauge (outlet)
Safety relief valve
Motor protection (overload, etc.)
Mounting hardware, guards
E. Documentation & Testing
Performance test certificate (flow vs pressure)
Operation & Maintenance manual, parts list
Warranty / guarantee papers and after-sales support
Deatil Pictures
Applications of Twin Lobe Air Blower AB-44
AKASH Twin Lobe Air Blower (AB-44) are positive displacement units engineered for reliable, oil-free air delivery. Their air delivery is governed by three key factors: blower geometry & size, rotational speed, and system pressure / resistance conditions.
Water & Wastewater Treatment Plants: Aeration systems, filter backwashing, sludge recirculation
Industrial Air Supply: Process air, agitation, pneumatic conveying
Aquaculture / Fish Farming: Aeration in ponds, biofloc systems
Chemical & Process Industries: Gas transfer, process air boosting
Packaging / Food / Pharma: Clean air supply, pneumatic systems
HVAC & Ventilation: Supporting air circulation, ventilation requirement
Laboratory / Test Systems: Controlled airflow, vacuum / pressure applications
Years Industry Experience
Clients across India
Reapt Client Rate
Cities in PAN India
Blowers Installed
Get in touch
How can we help your business?
Quickly maximize timely deliverables for real-time schemas. Dramatically maintain clicks-and-mortar solutions without functional solutions.
We are here to help you.
FAQs
It delivers up to 208 M³/HR at 1000 MMWG and 1600 RPM.
Yes, it is available in both air-cooled and water-cooled models.
It supports up to 10,000 MMWG pressure depending on RPM and cooling type.
Yes, the water-cooled version is ideal for pressures above 7000 MMWG.
It’s widely used in STP/ETP plants, pneumatic conveying, power, and cement industries.
