Twin Lobe Air Blower (AB-325)
AKASH Twin Lobe Air Blower (AB-325) are precision-engineered, direct-drive positive displacement units designed for oil-free, continuous air delivery. The actual performance is defined by three core parameters: blower geometry & size, rotational speed, and system pressure / resistance.
Twin Lobe Air Blower (AB-325)

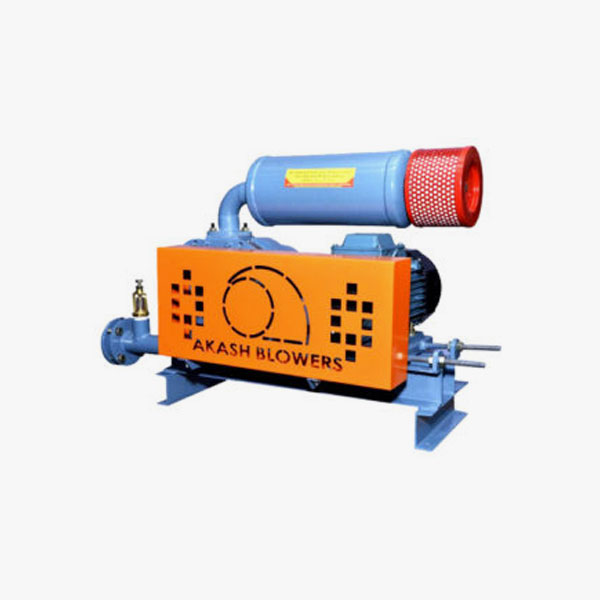

AKASH Twin Lobe Air Blower AB-325
The AKASH AB-325 is a high-performance, air-cooled twin-lobe blower designed for medium to high-pressure applications. It delivers flow rates from 5 to 97 m³/hr and supports pressures up to 7000 MMWG. Operating at speeds between 800 to 1600 RPM, it ensures consistent airflow with minimal noise and vibration. Its compact, oil-free design makes it ideal for continuous-duty operations in industries such as wastewater treatment, pneumatic conveying, and aquaculture. The blower’s air-cooled system eliminates the need for external cooling, simplifying installation and maintenance.
Product Details
Products Video
Details
| Speed (RPM) | 1000 MMWG (M³/HR / BHP) | 3000 MMWG (M³/HR / BHP) | 5000 MMWG (M³/HR / BHP) | 7000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|
| 800 | 38 / 0.3 | 24 / 0.7 | 18 / 0.9 | 9 / 1.4 |
| 1000 | 53 / 0.4 | 38 / 0.9 | 33 / 1.2 | 24 / 1.7 |
| 1200 | 67 / 0.5 | 53 / 1.1 | 48 / 1.4 | 39 / 2.1 |
| 1400 | 82 / 0.6 | 67 / 1.3 | 62 / 1.7 | 53 / 2.4 |
| 1600 | 97 / 0.6 | 82 / 1.5 | 77 / 1.9 | 68 / 2.8 |
Features
Direct-drive configuration for high efficiency and reduced maintenance
100% oil-free, pulsation-free air delivery
Low noise and vibration levels
Compact and robust design
Continuous duty operation capability
High volumetric efficiency
Long bearing life and minimal wear components
Easy installation, alignment, and servicing
Suitable for small to medium air demand applications
SCOPE OF SUPPLY (TRI LOBE ROOTS AIR BLOWERS)
A. Blower & Drive Assembly
AB-325 twin-lobe blower unit with rotors, shaft, side plates, bearings
Direct coupling to electric motor (no belts)
B. Motor & Mounting Hardware
Electric motor compatible with AB-325 capacity (rated HP / RPM)
Base frame / mounting plate with alignment and vibration isolation features
Anti-vibration mounts / pads
C. Air Intake & Outlet Components
Inlet filter / strainer
Suction silencer
Discharge flange / pipe stub connection
D. Control & Protection Elements
Outlet pressure gauge
Motor overload / protection device
Guarding over coupling / moving parts
E. Documentation & Testing
Performance curve (flow vs pressure data)
Operation & Maintenance (O&M) manual, parts list, recommended spares
Warranty / guarantee papers and after-sales support
Deatil Pictures
Applications of Twin Lobe Air Blower (AB-325)
AKASH Twin Lobe Air Blower (AB-325) are precision-engineered, direct-drive positive displacement units designed for oil-free, continuous air delivery. The actual performance is defined by three core parameters: blower geometry & size, rotational speed, and system pressure / resistance.
Aeration in small / medium wastewater or STP systems
Air supply in aquaculture / fish farming systems
Blower for pneumatic systems in labs or process units
Air agitation, bubbling, or mixing applications
Clean air supply in small equipment enclosures
Supplementary blower in process or HVAC systems
Years Industry Experience
Clients across India
Reapt Client Rate
Cities in PAN India
Blowers Installed
Get in touch
How can we help your business?
Quickly maximize timely deliverables for real-time schemas. Dramatically maintain clicks-and-mortar solutions without functional solutions.
We are here to help you.
FAQs
It can deliver up to 97 M³/HR at 1000 MMWG.
It supports pressure from 1000 to 7000 MMWG.
Yes, it’s designed for reliable continuous operation.
No, it’s an air-cooled model, requiring no external cooling.
It’s ideal for ETP/STP plants, pneumatic conveying, and aquaculture.
