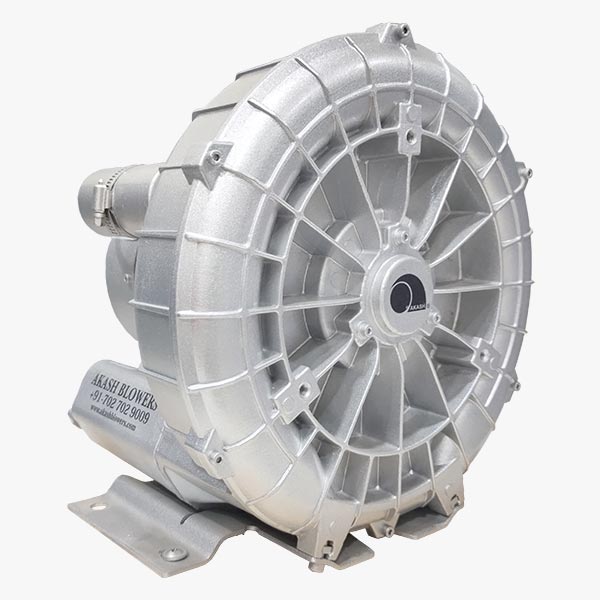

Single Stage Ring Blower consist of a ring-shaped housing. Side channel and the rotor opposite create a working area between intake and blow-out connections. The blade segments of the rotor suck the air and create radial pressure during turning. The centrifugal force causes the air to be pressed to the outside in the side channel. This creates a circular current between channel and blade segments. Due to the radial pressure, the air to be compressed in the chamber begins turning. The spiral swirling compresses the air several times and causes the pressure to rise. At the end of the chamber the compressed air is then pushed pulsation-free by the rotor through the blow-out connection.
Description
| MODEL | POWER | DISPLACEMENT | VACUUM | PRESSURE | PRESSURE PSI | SOUND | WEIGHT |
|---|---|---|---|---|---|---|---|
| ARB_SS-25 | 0.25 HP | 80 M³/hr/47 CFM | 120 mbar | 120 mbar | 1.74 PSI | 53 DB | 9 KG |
| ARB_SS-80 | 0.5 HP | 80 M³/hr/47 CFM | 130 mbar | 140 mbar | 2.03 PSI | 62 DB | 12 KG |
| ARB_SS-145 | 1 HP | 145 M³/hr/85 CFM | 150 mbar | 160 mbar | 2.32 PSI | 63 DB | 14 KG |
| ARB_SS-210L | 1.5 HP | 210 M³/hr/123 CFM | 170 mbar | 170 mbar | 2.46 PSI | 64 DB | 22 KG |
| ARB_SS-210 | 2 HP | 210 M³/hr/123 CFM | 190 mbar | 200 mbar | 2.9 PSI | 70 DB | 23 KG |
| ARB_SS-270 | 3 HP | 270 M³/hr/123 CFM | 230 mbar | 250 mbar | 3.91 PSI | 67 DB | 27 KG |
| ARB_SS-320V | 4 HP | 320 M³/hr/188 CFM | 270 mbar | 290 mbar | 4.2 PSI | 69 DB | 37 KG |
| ARB_SS-400 | 5 HP | 400 M³/hr/235 CFM | 290 mbar | 330 mbar | 4.78 PSI | 77 DB | 40 KG |
| ARB_SS-530 | 7.5 HP | 530 M³/hr/312 CFM | 300 mbar | 320 mbar | 4.64 PSI | 80 DB | 62 KG |
| ARB_SS-530P | 10 HP | 530 M³/hr/312 CFM | 320 mbar | 380 mbar | 5.51 PSI | 82 DB | 68 KG |
| ARB_SS-1050 | 11 HP | 1050 M³/hr/618 CFM | 210 mbar | 210 mbar | 3.04 PSI | 77 DB | 93 KG |
| ARB_SS-1050P | 16.5 HP | 1050 M³/hr/618 CFM | 280 mbar | 270 mbar | 3.91 PSI | 80 DB | 116 KG |
| ARB_SS-1050HP | 24.5 HP | 1050 M³/hr/618 CFM | 340 mbar | 460 mbar | 6.67 PSI | 82 DB | 126 KG |
Frequently Ask Question (FAQs)
What is a Single Stage Ring Blower used for?
It is used to generate pulsation-free air pressure for vacuum or pressure applications.How does a Single Stage Ring Blower work?
It creates radial pressure by circulating air between the side channel and rotor blades using centrifugal force.What is the maximum pressure a ring blower can generate?
The highest pressure model, ARB_SS-1050HP, delivers up to 6.67 PSI (460 mbar).Are these blowers suitable for continuous operation?
Yes, they are designed for continuous, oil-free, maintenance-free operation.How noisy is a Single Stage Ring Blower during use?
Noise levels range from 53 dB to 82 dB, depending on the model.
