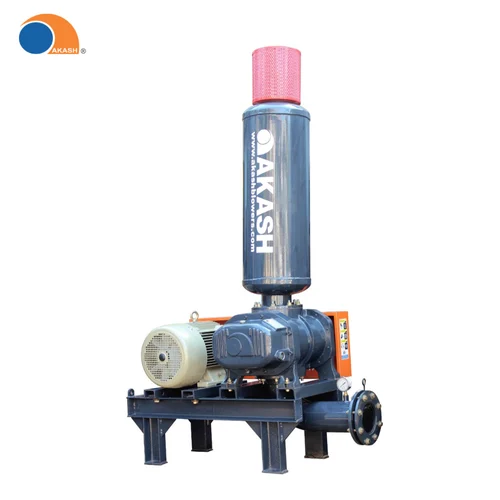

Roots Air Blower (AB-315)
AKASH Roots Air Blower AB-315 are compact, positive displacement twin-lobe blowers engineered for efficient, oil-free air delivery in demanding settings. Their output is governed by three critical factors: blower configuration (size & rotor design), rotational speed (RPM), and system pressure / backpressure conditions.

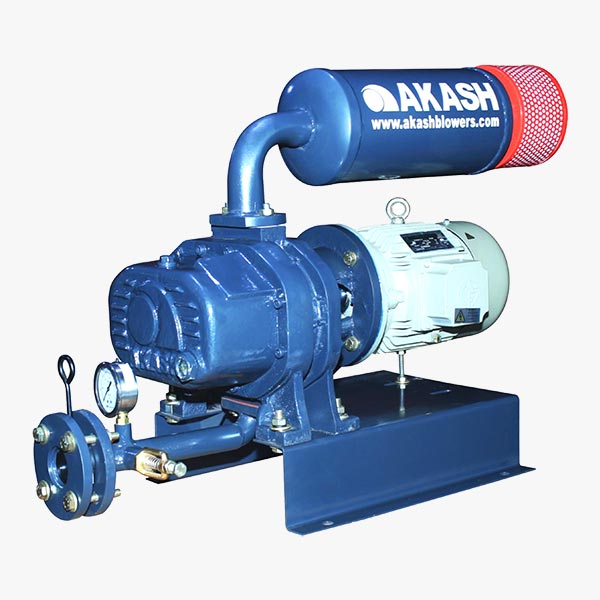

Roots Air Blower (AB-315)
The AKASH Model AB-315 Roots Air Blower is a compact and efficient positive displacement blower designed for continuous-duty performance. Delivering up to 68 M³/HR airflow with a maximum pressure of 7000 MMWG, it features 25/40 mm inlet and outlet connections for flexible installation. Built for 100% oil-free air delivery, this model ensures clean and reliable operation, making it ideal for small industrial setups, aquaculture systems, and pneumatic conveying. With low power consumption, minimal maintenance, and durable construction, the AB-315 provides long-lasting, energy-efficient performance for demanding applications.
Product Details
Products Video
Features
Flow up to 68 m³/hr (at 1800 RPM, 1000 MMWG)
Pressure capacity from 1000 to 7000 MMWG depending on operating point
Compact unit with inlet/outlet 25 mm / 40 mm configuration
100% oil-free air delivery (lubrication chamber isolated from air chamber)
Low power consumption (BHP ranges from ~0.26 to ~2.33 depending on load)
Wide RPM operability (800-1800 RPM) for flexibility
Continuous-duty design for 24/7 operation
Minimal maintenance requirement
Low noise and vibration during operation
Easy installation and alignment
SCOPE OF SUPPLY (Roots Air Blower (AB-315))
A. Blower & Rotor Assembly
Twin-lobe rotor unit (housing, rotors, shafts, bearings)
Air-cooled design with sealed casing
Inlet / outlet flanges (25 mm / 40 mm)
B. Drive & Mounting Hardware
Electric motor (selected per required flow / pressure)
Base frame / structural mounting with alignment pads
Coupling (flexible / rigid) and guards
C. Air Path Accessories
Inlet filter or strainer
Suction silencer
Discharge connecting flange / piping stub
D. Instrumentation & Safety Devices
Pressure gauge (outlet)
Safety relief valve (overpressure protection)
Motor overload protection, guarding of moving parts
E. Documentation & Testing
Performance test certificate (flow vs pressure / RPM)
Operation & Maintenance (O&M) manual, parts list, recommended spares
Warranty / guarantee documents and after-sales support
Deatil Pictures
Applications of Roots Air Blower (AB-315)
AKASH Roots Air Blower AB-315 are compact, positive displacement twin-lobe blowers engineered for efficient, oil-free air delivery in demanding settings. Their output is governed by three critical factors: blower configuration (size & rotor design), rotational speed (RPM), and system pressure / backpressure conditions.
Municipal / Industrial ETP / STP: aeration, filter backwashing, sludge recirculation
Aquaculture / Fish Farming: aeration in ponds, RAS systems
Laboratories / Pilot Plants: compact air supply for small systems
Light Pneumatic Systems: conveying light particles or air agitation
Process Air Needs: clean air supply in small process modules
HVAC / Ventilation in Enclosures: airflow in controlled spaces
Â
Years Industry Experience
Clients across India
Reapt Client Rate
Cities in PAN India
Blowers Installed
Get in touch
How can we help your business?
Quickly maximize timely deliverables for real-time schemas. Dramatically maintain clicks-and-mortar solutions without functional solutions.
We are here to help you.
FAQs
It delivers up to 68 M³/HR at 1800 RPM and 1000 MMWG pressure.
It operates from 1000 to 7000 MMWG across multiple RPMs.
The AB-315 is an air-cooled model.
The blower comes with 25mm inlet and 40mm outlet ports.
Yes, it provides 100% oil-free air suitable for sensitive processes.
