Direct Drive Twin Lobe Roots Blowers
AKASH Direct-Drive Twin Lobe Roots Blowers are precision-engineered positive displacement units that deliver oil-free, pulsation-minimized airflow. Their volumetric output is controlled by three primary parameters: blower geometry (twin-lobe design), rotational speed, and system pressure or resistance.
Direct Drive Twin Lobe Roots Blowers

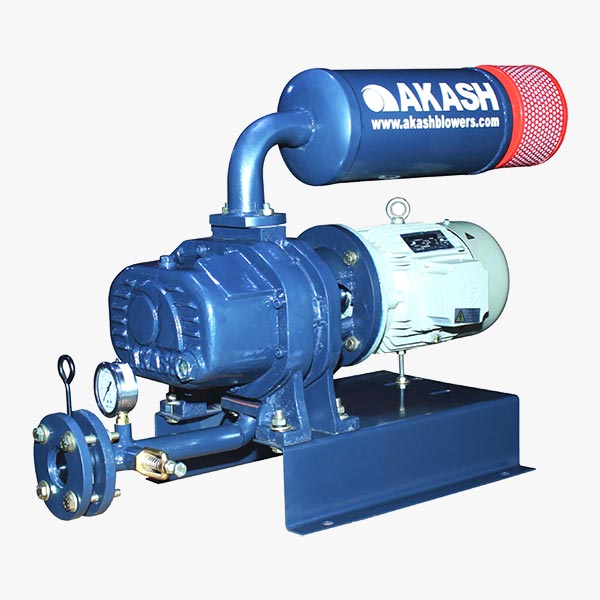

AKASH 0.75 HP & 1 HP Direct Drive Twin Lobe Roots Blowers are compact, sturdy, and low-noise machines designed for industrial applications requiring continuous duty. Engineered for minimal vibration, extended bearing life, and low maintenance, they save space while ensuring reliable performance. Each blower comes as a complete package with all accessories, coupled with an electric motor, ready for installation. The direct drive design enhances efficiency, reduces noise, and simplifies maintenance, making these blowers ideal for industries seeking dependable, high-performance, and easy-to-operate air delivery solutions.
Product Details
Products Video
Details
| MODEL | IN./OUT. | MOTOR | SPEED | 1000 MMWG | 2000 MMWG | 3000 MMWG |
| Â | (MM) | HP | (RPM) | M3/HR | M3/HR | M3/HR |
| AB-305 | 19 | 0.75 | 940 1440 | 16 19 | 13 17 | 10 15 |
| MODEL | IN./OUT. | SPEED | 1000 MMWG | 2000 MMWG | 3000 MMWG | 4000 MMWG | 5000 MMWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Â | (MM) | (RPM) | M3/HR | BHR | M3/HR | BHR | M3/HR | BHR | M3/HR | BHR | M3/HR | BHR |
| AB-315 | 25 40 | 940 1440 | 30 50 | 0.31 0.47 | 25 47 | 0.45 0.71 | 21 43 | 0.61 0.93 | 18 40 | 0.77 1.17 | 15 | 0.91 |
Features
100% oil-free, clean air delivery
Direct drive (no belt losses), improving efficiency and reducing maintenance
Low noise and vibration
Compact footprint due to elimination of belt drive
Continuous-duty operation suited for industrial use
Robust construction with precision-timed rotors
High volumetric efficiency and stable pressure output
Easy to install and align
Available in various capacities, pressures
Optional accessories (silencers, non-return valves, acoustic enclosures)
SCOPE OF SUPPLY (Direct Drive Twin Lobe Roots Blowers)
A. Blower Core & Drive
Twin-lobe rotor assembly with hardened timing gears
Direct-coupled electric motor (i.e. motor shaft directly driving blower, no belts)
Rigid housing, side plates, bearings
B. Mounting & Integration
Common baseplate or motor mounting frame
Flexible coupling guard (if used)
Anti-vibration pads or mounts
C. Air Path & Accessories
Inlet filters, silencers
Non-return (check) valve
Flexible connectors, flanged suction/discharge connections
D. Instrumentation & Protection
Pressure gauge, temperature sensor
Motor protection (overload, thermal)
Safety relief valve or burst disc
E. Documentation & Testing
Operation & Maintenance manual
GA / dimensional drawings, parts list
Performance test certificate (flow, pressure, noise, vibration)
Warranty and after-sales support

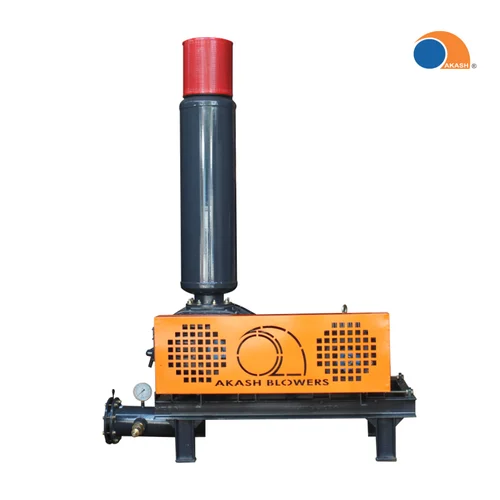

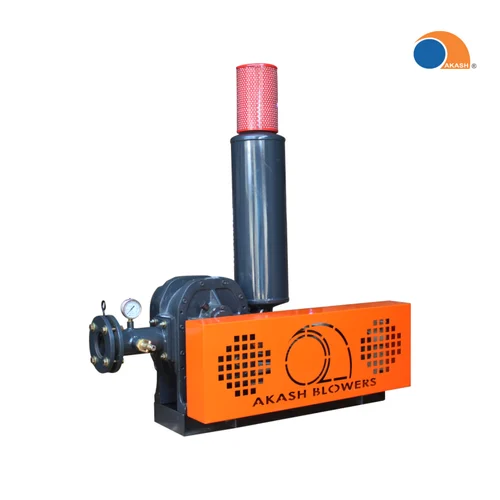

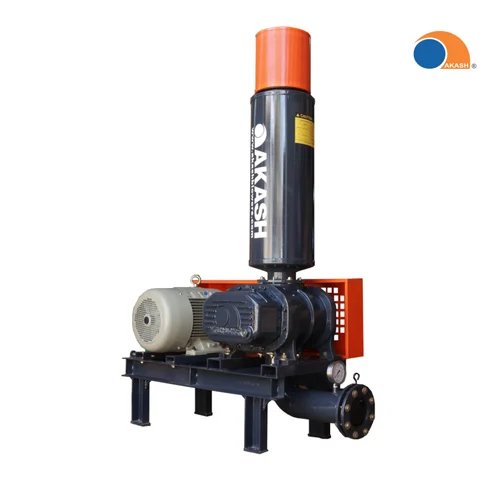

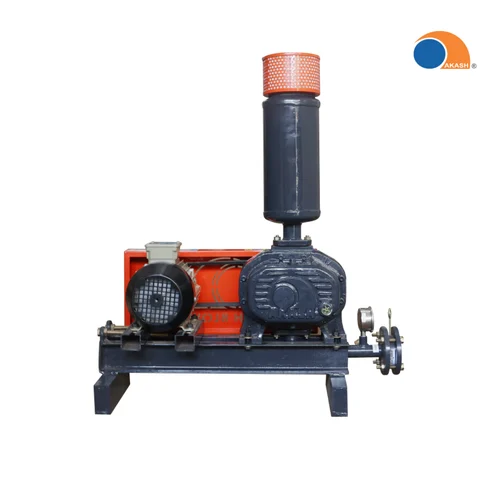

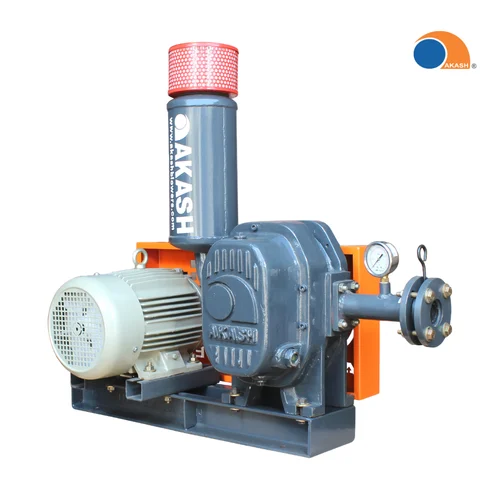

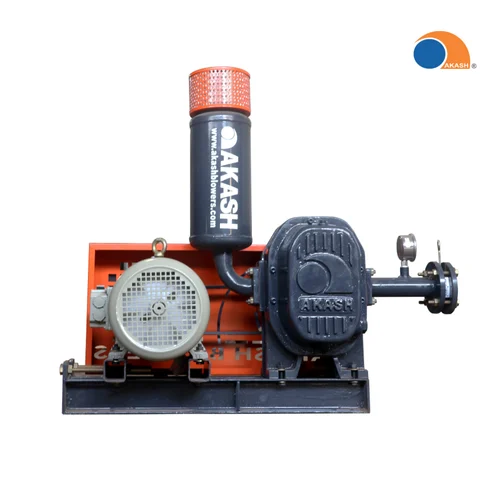

Deatil Pictures
Applications of Direct Drive Twin Lobe Roots Blowers
AKASH Direct-Drive Twin Lobe Roots Blowers are precision-engineered positive displacement units that deliver oil-free, pulsation-minimized airflow. Their volumetric output is controlled by three primary parameters: blower geometry (twin-lobe design), rotational speed, and system pressure or resistance.
- Water & Wastewater Treatment: Aeration, recirculation, sludge agitation
- Aquaculture & Biofloc Systems: Oxygen supply, mixing, aeration in tanks and ponds
- Industrial Process Air: Process air supply, pneumatic conveying, cooling
- Chemical & Petrochemical:
 Gas boosting, vapor recovery, process air injection - Food & Packaging: Vacuum packaging, blowing, pneumatic transport
- Power & Utilities: Combustion air, FGD support, ash handling
- Cement, Minerals & Bulk Handling: Conveying powders, dust control, pneumatic systems
- Laboratory & Technical Applications: Controlled environment airflow, vacuum systems
Â
Years Industry Experience
Clients across India
Reapt Client Rate
Cities in PAN India
Blowers Installed
Get in touch
How can we help your business?
Quickly maximize timely deliverables for real-time schemas. Dramatically maintain clicks-and-mortar solutions without functional solutions.
We are here to help you.
FAQs
They come with 0.75 HP and 1 HP motor options.
Their direct drive design ensures low noise, compact size, and low vibrations.
Yes, they are supplied as a complete package with motor and accessories.
AB-305 delivers up to 19 M³/HR at 1000 MMWG and 13 M³/HR at 2000 MMWG.
AB-315 supports up to 5000 MMWG with an airflow of 15 M³/HR at 1440 RPM.
