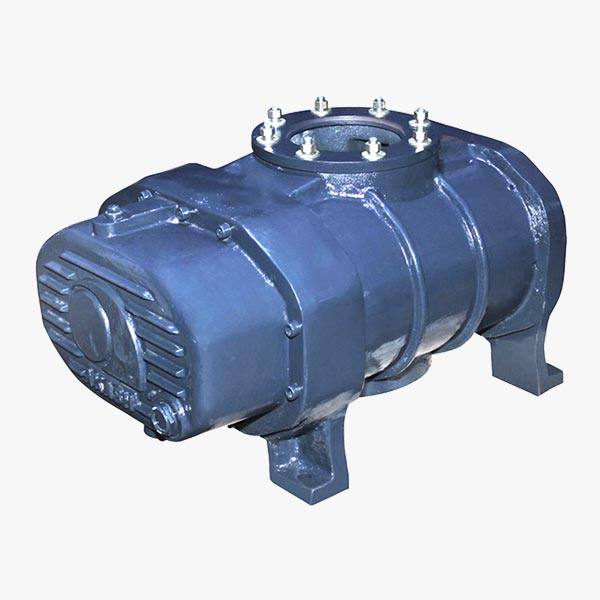

Bare Blower AB-5305
AKASH Bare Blower AB‑5305 Model AB‑5305 is a high-capacity, oil-free air delivery blower designed for industrial applications requiring clean, continuous airflow. It delivers up to 1000 m³/hr airflow at 6000 MMWG pressure, with a 125mm inlet/outlet line size. This bare blower is ideal for integration with custom motor, base frame, and accessories as per specific project requirements.
Bare Blower AB-5305
The AKASH Bare Blower AB-5305 (Air Cooled) delivers up to 1000 m³/hr airflow at pressures up to 6000 MMWG, making it ideal for high-capacity, oil-free air applications. Designed for a 125 mm line size, this bare blower comes without a motor or accessories, offering flexibility for customized installations. Its air-cooled design ensures efficient, reliable operation with minimal maintenance. Built for durability and consistent performance, the AB-5305 is perfect for industries seeking robust, continuous-duty air solutions that provide clean, pulsation-free airflow for demanding industrial processes.
Product Details
Products Video
Details
| MODEL | IN./OUT. (MM) | SPEED (RPM) | 1000 MMWG (M³/HR / BHP) | 2000 MMWG (M³/HR / BHP) | 3000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|---|
| AB-5305 | 125 | 800 | 435 / 3.1 | 381 / 5.1 | 339 / 7.2 |
| 1000 | 576 / 3.8 | 522 / 6.4 | 481 / 9.0 | ||
| 1200 | 718 / 4.6 | 664 / 7.7 | 622 / 10.8 | ||
| 1400 | 859 / 5.4 | 805 / 9.0 | 763 / 12.6 | ||
| 1600 | 1000 / 6.2 | 946 / 10.3 | 905 / 14.4 |
| MODEL | IN./OUT. (MM) | SPEED (RPM) | 4000 MMWG (M³/HR / BHP) | 5000 MMWG (M³/HR / BHP) | 6000 MMWG (M³/HR / BHP) |
|---|---|---|---|---|---|
| AB-5305 | 125 | 800 | 304 / 9.3 | 274 / 11.3 | 246 / 13.4 |
| 1000 | 446 / 11.6 | 415 / 14.2 | 387 / 16.7 | ||
| 1200 | 587 / 13.9 | 556 / 17.0 | 528 / 20.1 | ||
| 1400 | 728 / 16.2 | 698 / 19.8 | – | ||
| 1600 | 870 / 18.6 | 839 / 22.7 | – |
Features
High Capacity: Delivers up to 1000 m³/hr airflow at 6000 MMWG pressure
Oil-Free Air Delivery: Ensures clean, contaminant-free air for sensitive applications
Wide Speed Range: Operates efficiently at speeds from 800 to 1600 RPM
Continuous Duty: Designed for 24/7 operation in demanding industrial environments
Customizable Integration: Supplied as a bare blower for flexibility in system design
Robust Construction: Built to withstand harsh operating conditions and ensure long service life
SCOPE OF SUPPLY (Bare Blower AB-5305)
A. Blower & Rotor Assembly
Model: AB‑5305 Twin Lobe Roots Blower
Construction: Precision-machined cast iron housing, robust rotors, and shafts
Cooling: Air-cooled design for efficient heat dissipation
B. Drive & Mounting System
Motor: To be selected based on required airflow and pressure
Mounting: Custom base frame and alignment as per project specifications
Coupling: To be provided based on motor and blower shaft specifications
C. Air Path Components
Inlet/Outlet Size: 125mm
Accessories: To be selected based on application requirements (e.g., silencers, filters)
D. Instrumentation & Protection
Pressure Gauge: Outlet side
Safety Relief Valve: For overpressure protection
Motor Protection: Overload protection device (to be selected)
E. Documentation & Support
Manuals: Operation & Maintenance (O&M) manual, parts list
Warranty: Standard warranty and after-sales support
Deatil Pictures
Applications of Bare Blower AB-5305
AKASH Bare Blower AB‑5305 Model AB‑5305 is a high-capacity, oil-free air delivery blower designed for industrial applications requiring clean, continuous airflow. It delivers up to 1000 m³/hr airflow at 6000 MMWG pressure, with a 125mm inlet/outlet line size. This bare blower is ideal for integration with custom motor, base frame, and accessories as per specific project requirements.
Aeration Systems: Used in wastewater treatment plants (ETP/STP) for oxygen supply
Pneumatic Conveying: Suitable for conveying bulk materials in various industries
Combustion Air Supply: Provides air for combustion processes in industrial furnaces
Industrial Processes: Supports various processes requiring high-capacity, oil-free air
Custom Applications: Ideal for integration into custom systems requiring specific blower specifications
Years Industry Experience
Clients across India
Reapt Client Rate
Cities in PAN India
Blowers Installed
Get in touch
How can we help your business?
Quickly maximize timely deliverables for real-time schemas. Dramatically maintain clicks-and-mortar solutions without functional solutions.
We are here to help you.
FAQs
It delivers up to 1000 M³/HR at 1600 RPM and 1000 MMWG pressure.
No, it is a bare blower supplied without motor, base frame, or silencers.
It supports pressure up to 6000 MMWG depending on speed.
The blower has a 125mm line size for both inlet and outlet.
It is used in ETP/STP plants, aeration systems, and pneumatic conveying.
